3.4.2 requests.js

The requests.js file defines all available diagnostic requests in the ClinicEdge application. It sets the basis for the user interface, organizing diagnostic request categories, subcategories, and the selectable items the user can request.

This script defines:

• Diagnostic request groups and corresponding items (requestGroups)
• Form layouts, categories, and test keys (requestItems)

Key Definitions

1. requestGroups

What it does:
Defines the top-level diagnostic categories available in ClinicEdge and their associated requestItems

What it connects to:

• request_group field in FindingsTemplate table
• request_group field in PatFindings table
• generateFinding function in logic_server.js
• requestItems in requests.js (see below)

How it can be modified:

• Add or remove diagnostic groups
• Add or remove request items within each group

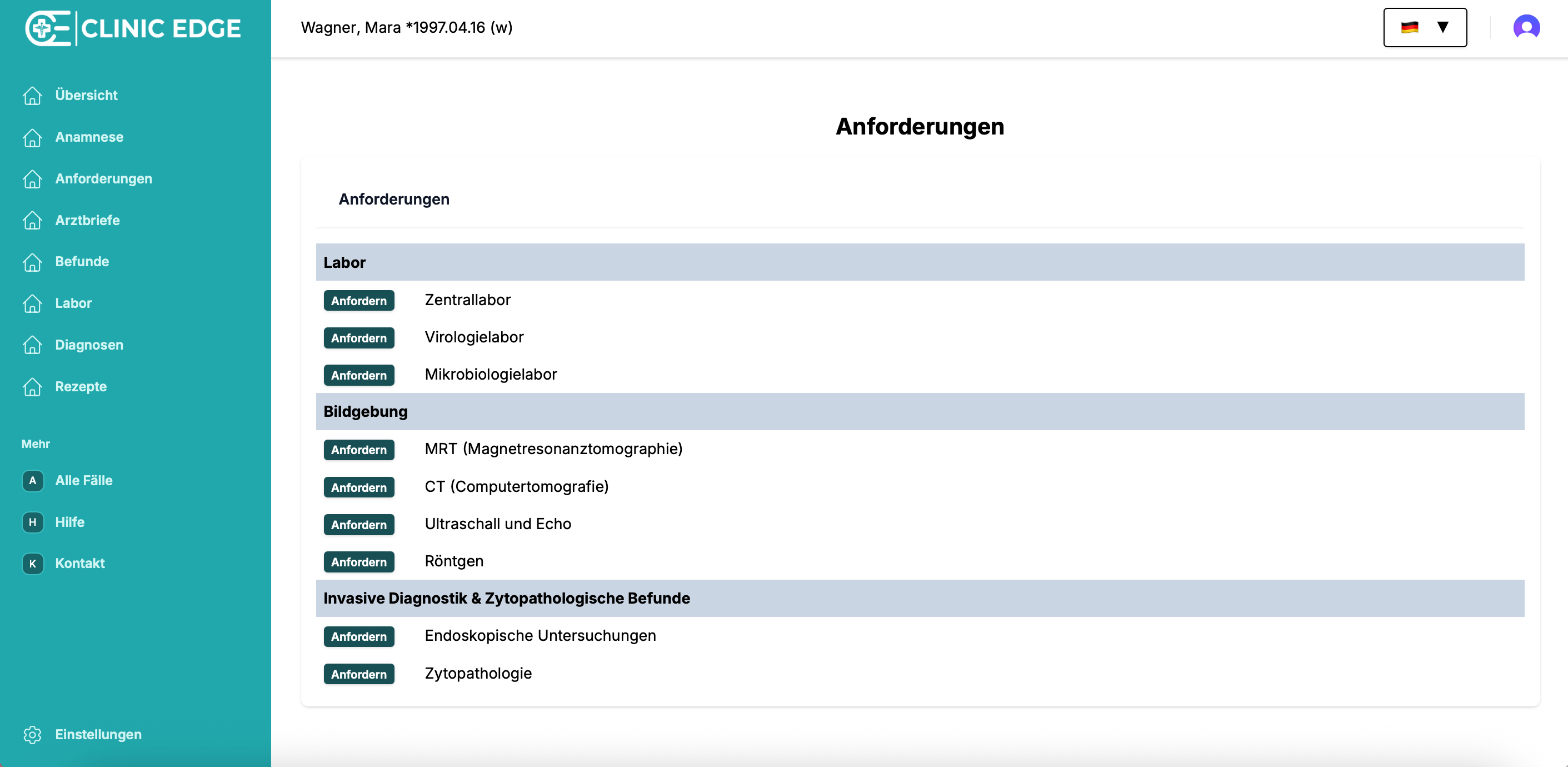

Hierarchy overview:

request_group
├── laboratory
│   ├── labs
│   ├── virology
│   └── microbiology
├── imaging
│   ├── mri
│   ├── ct
│   ├── us
│   └── xray
└── invasive_diagnostics
│   ├── surgery
│   └── cytology_pathology

Example:

export const requestGroups = {
  laboratory: {
    items: ["labs", "virology", "microbiology"],
  },
  imaging: {
    items: ["mri", "ct", "us", "xray"],
  },
    invasive_diagnostics: {
    items: ["surgery", "cytology_pathology"],
  }
};

2. requestItems

What it does:
Defines the structure and hierarchy of each request_item, including:

• UI form layout (e.g. checkbox)
• Subcategories (e.g. labs > electrolytes)
• Test keys (e.g. labs > electrolytes > sodium, potassium)

What it connects to:

• Presentation of request forms in the ClinicEdge application
• generateLabValues in logic_server.js for lab requests
• generateFinding in logic_server.js for all other diagnostic requests
• Normal or default ranges and findings as defined in labvalues.js (labs) and normalfindings_collection.js (vitals, microbiology, history)
• vars and vars_path in the FindingsTemplate table
• Categories as defined in requestGroups in requests.js (see above)

How it can be modified:

• CHange the form layout
• Add, remove or modify subcategories
• Add, remove or modify test keys within a category

Hierarchy overview:

requestItems
├── labs
│   └── electrolytes
│       ├── sodium
│       └── potassium
├── virology
├── microbiology
├── mri
├── ct
├── us
├── xray
├── surgery
└── cytology_pathology

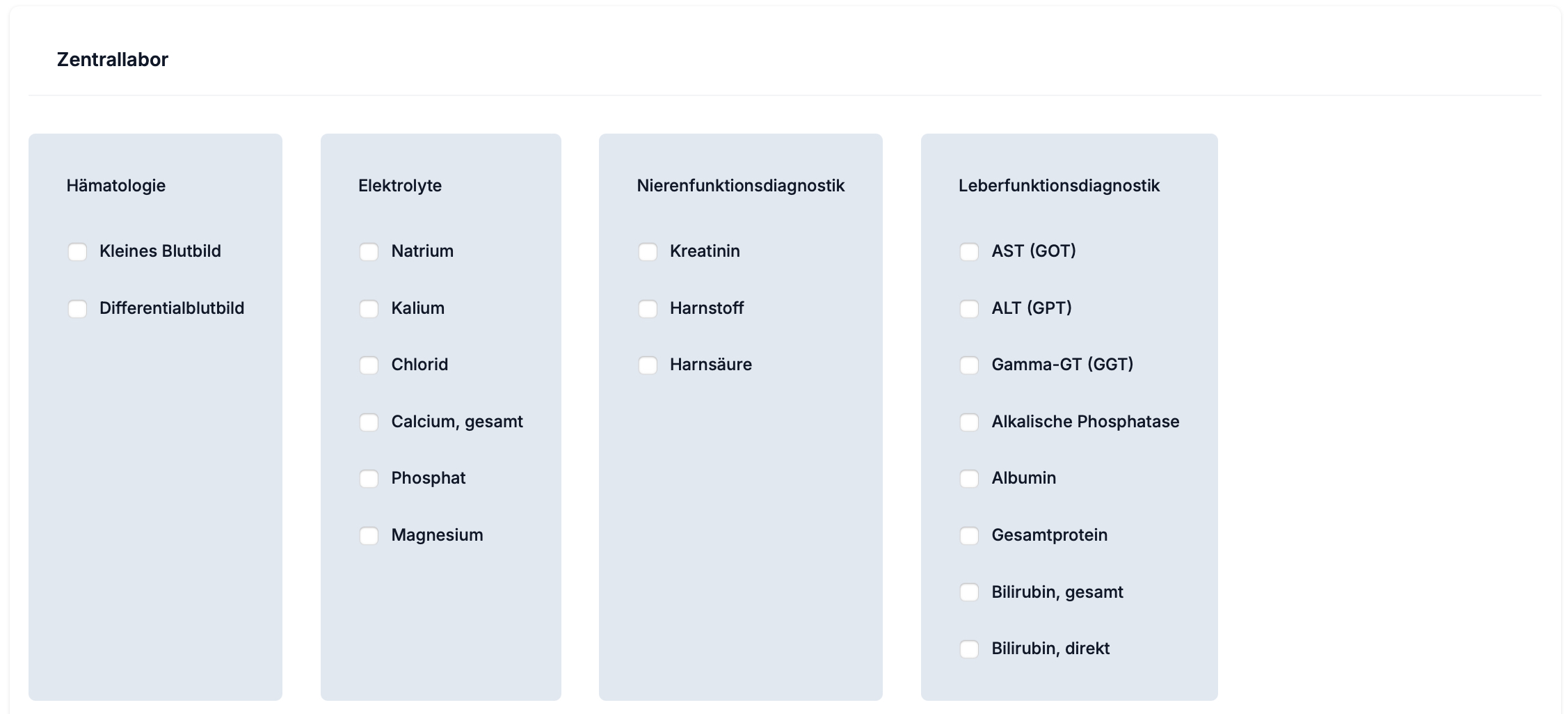

Example 1:

export const requestItems = {
  labs: {
    form: {
      electrolytes: {
        type: "checkbox",
        required: false,
        choices: {
          sodium: {
            type: "option",
          },
          potassium: {
            type: "option",
          }
        }
      }
    }
  }
}

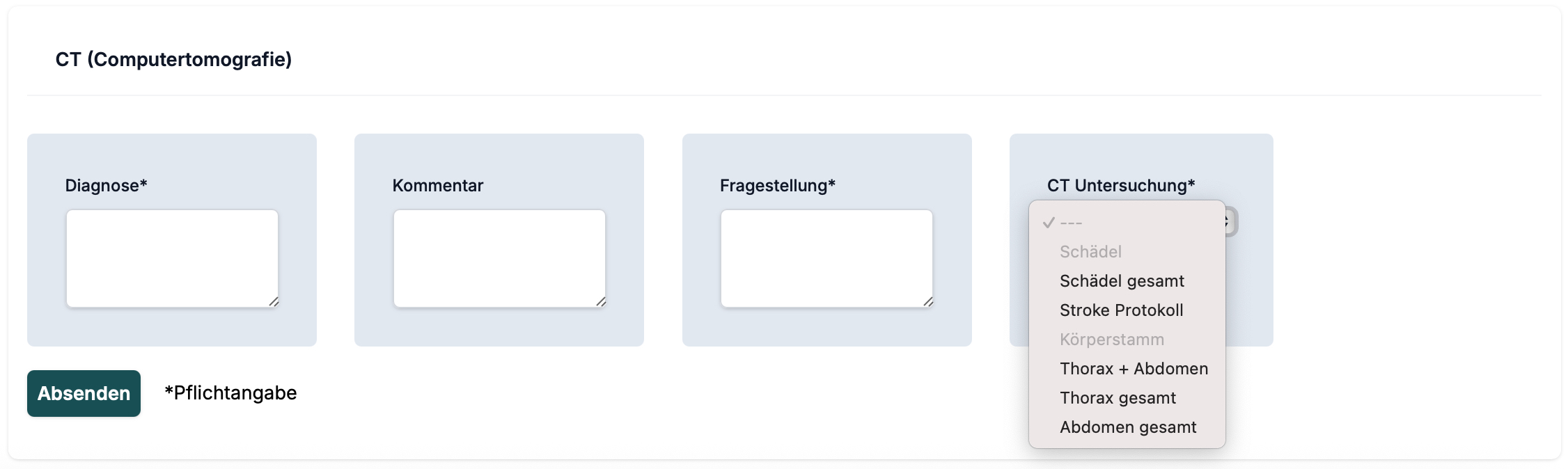

Example 2:

  ct: {
    form: {
      ct_diagnosis: {
        type: "text",
        required: true,
      },
      ct_comment: {
        type: "text",
        required: false,
      },
      ct_question: {
        type: "text",
        required: true,
      },
      ct_type: {
        type: "select",
        required: true,
        choices: {
          ct_skull: {
            type: "heading",
          },
          ct_skull_whole: {
            type: "option",
          },
          ct_skull_stroke: {
            type: "option",
          },
          ct_trunk: {
            type: "heading",
          },
          ct_thorax_abdomen: {
            type: "option",
          }
        }
      }
    }
  }
