3.2.9 PatRx

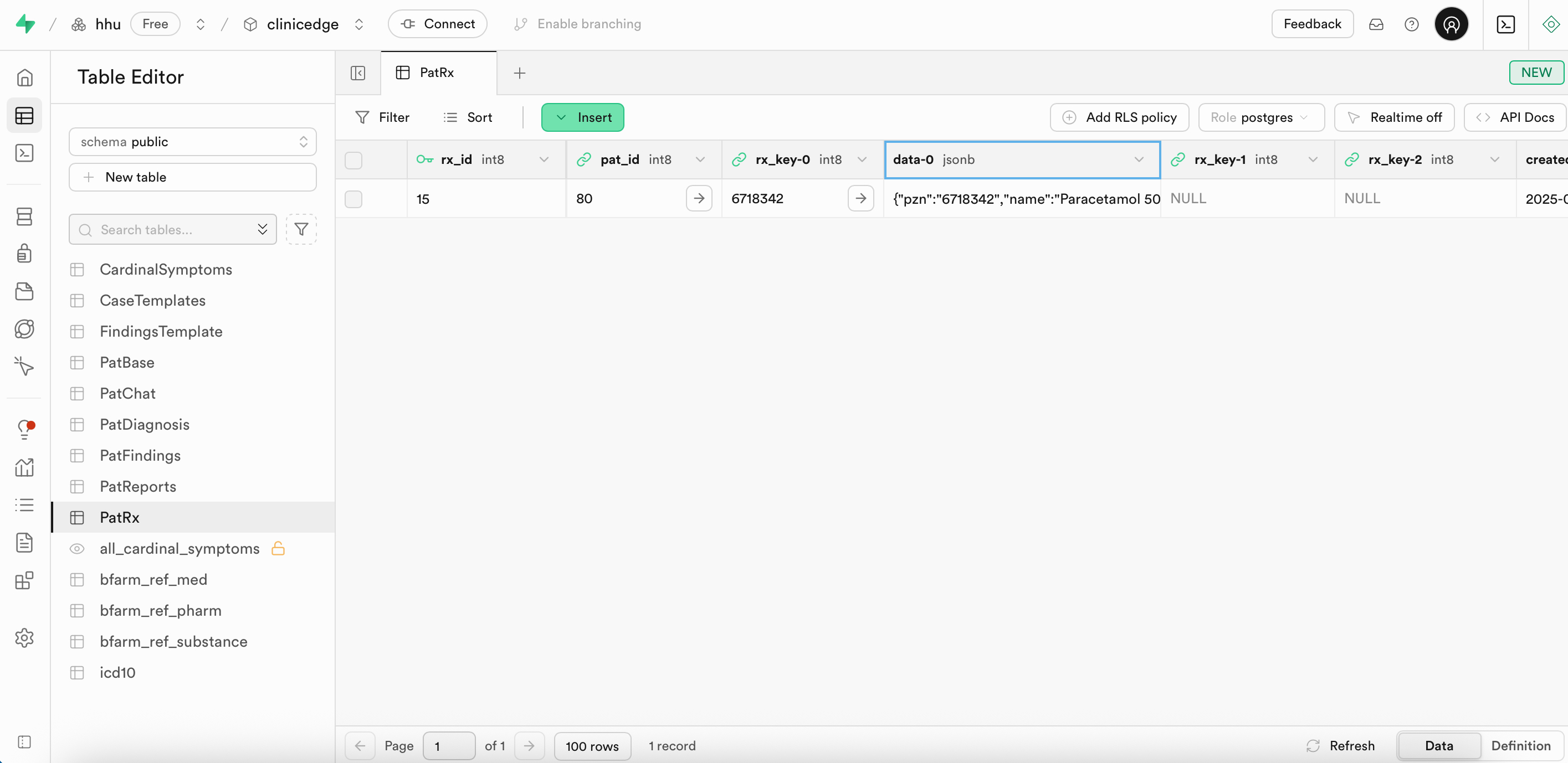

The PatRx table in Supabase stores all prescriptions for each patient case. Each medication is linked to a patient via pat_id and receives a unique rx_id. The table supports storage of up to three medications, with metadata including the medication name, Pharmazentralnummer (PZN), and an internal rx_key.
Table Structure
| Column | Format | Type | Description |
|---|---|---|---|
pat_id | bigint | number | Internal ID of the patient receiving the prescription (as in PatBase) |
rx_id | bigint | number | Unique prescription ID |
data-0 | jsonb | json | Metadata for medication 1 (e.g., pzn, name, rx_key) |
data-1 | jsonb | json | Metadata for medication 2 (e.g., pzn, name, rx_key) |
data-2 | jsonb | json | Metadata for medication 3 (e.g., pzn, name, rx_key) |
rx_key-0 | text | string | Internal medication key for medication 1 |
rx_key-1 | text | string | Internal medication key for medication 2 |
rx_key-2 | text | string | Internal medication key for medication 3 |
Example medication metadata:
{
"pzn": "6718342",
"name": "Paracetamol 500 mg (Tabl)",
"rx_key": "6718342"
}
Integration within the System
Medications are added to the PatRx table using the addRx function in logic_server.js. Medication metadata includes pzn and rx_key, which are matched to RMP_PZN and RMP_KEY in the bfarm_ref_med table in Supabase. Each prescription is linked to the correct patient case via pat_id.
