3.2.5 PatChat

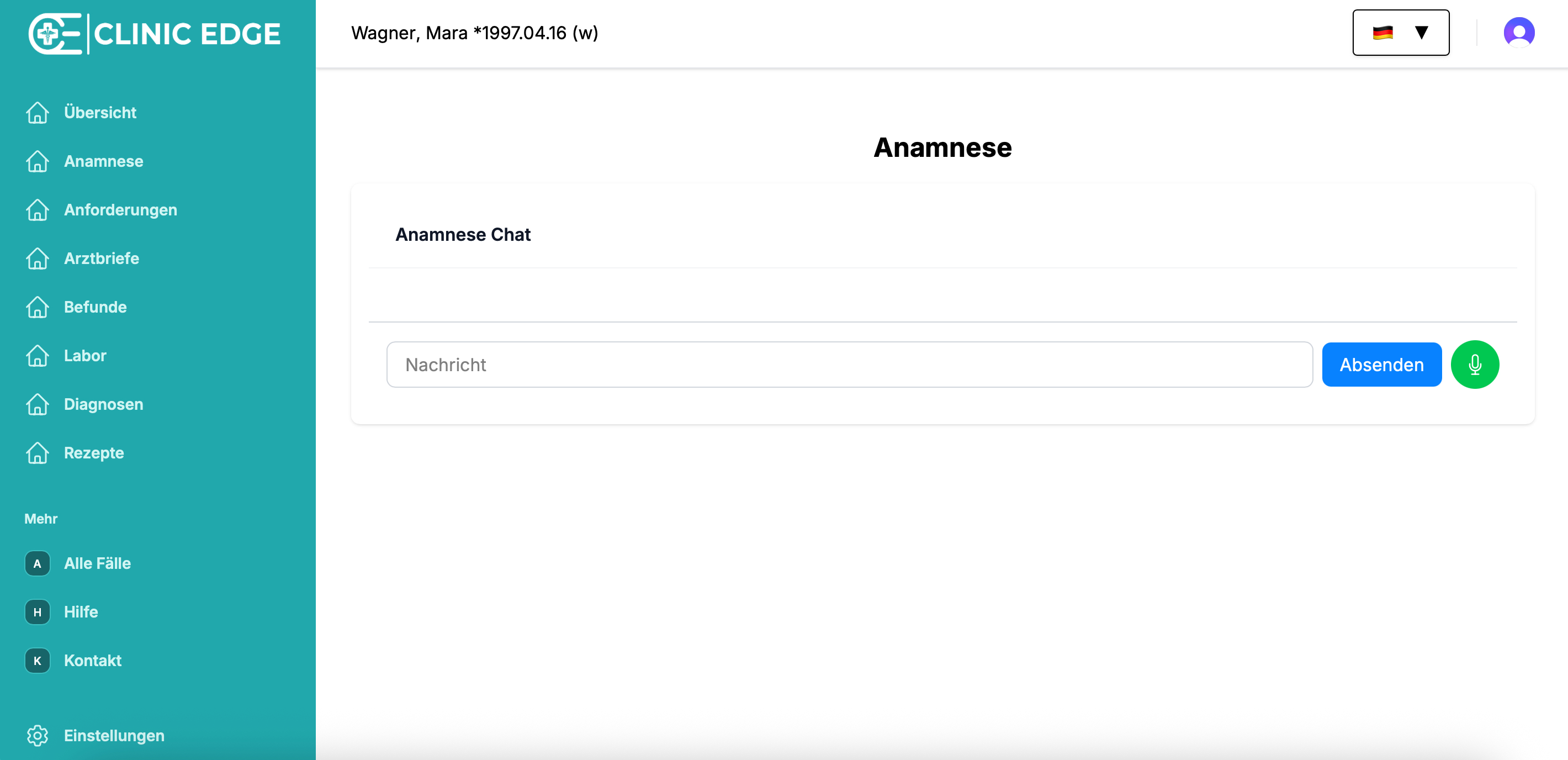

Clinic Edge offers the functionality to take the medical history of a patient via chatting with an AI bot (text or audio). The information, which is gathered during the anamnesis, is stored in the PatChat table in Supabase and assigned to the patient case using the pat_id (as in PatBase). In addition to the content of the conversation, the table also contains some audio information if this functionality is used.
Table Structure
| Column | Format | Type | Description |
|---|---|---|---|
id | bigint | number | Unique ID of each statement (from the Patient/AI bot) or question (from the user) |
pat_id | bigint | number | Corresponding patient case (as in PatBase) |
content | jsonb | json | Conversation content |
audio | jsonb | json | Audio content if audio functionality is used (optional) |
Example content:
User:
Nehmen Sie Medikamente?
Patient:
Nein, ich nehme keine Dauermedikation ein.
Integration within the System
When a user initiates the patient chat, the system fetches pat_data from PatBase and uses the AI model xxx to provide responses and run the conservation. The pat_data contains all patient-specific findings and values in JSON format and is generated from case_data within the CaseTemplates Table. For details on the structure and content of pat_data, see Section 3.2.4 PatBase.
The chat, including text and optionally audio, is recorded and stored in the PatChat table in Supabase. Each entry is linked to the corresponding patient via pat_id.
